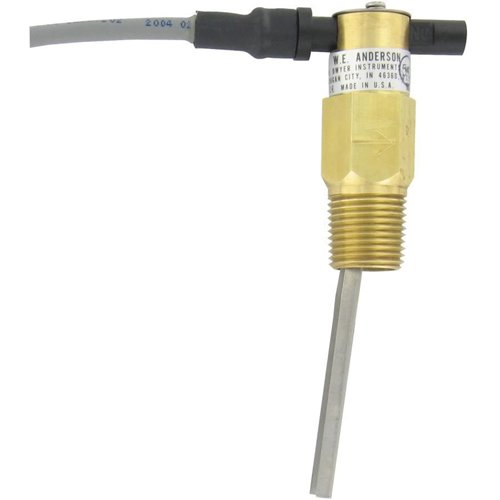

HM508-Flow Swtich - Mini-Size

• Designed to provide an inexpensive, reliable unit to monitor the presence or absence of flow in a system;
• Rugged, hermetically sealed reed switch is encapsulated in a polypropylene switch housing that fits into a standard heavy duty leak proof brass body or optional 303 stainless steel body ;
• Patented switch adjustment allows the user to change the switch to normally open (NO) or normally closed (NC) in the field merely by loosening two screws;
• Switch housing is located outside the process media, making switch change-over or maintenance easy without interruption of process flow;
• Wetted materials of brass, stainless steel and ceramic 8 magnet provide excellent chemical resistance and compatibility;
• Full size, trimmable stainless steel vane is provided with a removable laminated template;
• Template is calibrated for brass or ductile iron reducing tees and forged steel straight tee/bushing combinations ;
• Allows for field installation in pipelines from 1/2" to 2" diameter;
• Rated for pressures up to 2000 PSIG

Specifications

• Operating Temperature: 200°F (93°C)

Additional Specifications

• Max. Pressure: 150 PSIG
• Material: Stainless Steel Body
