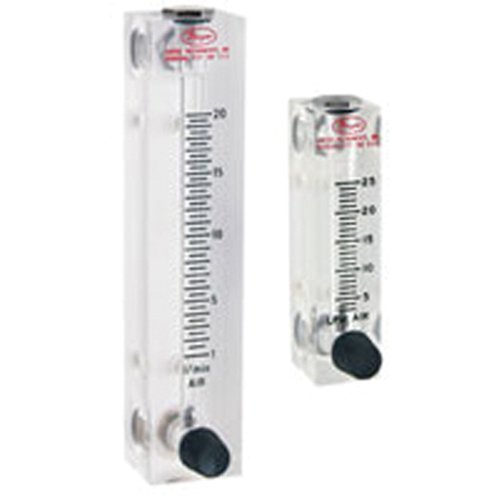

HL427-VBF In-Line Flow Meter - 4" Scale

• Cut and precision machined from solid, clear acrylic plastic bodies that permit complete visual inspection. Tapered bore is precision machined to a smooth surface that also provides perfect visibility of the indicating float;
• VFB models are available with either brass or stainless steel inlet and outlet connections and are tapped for 1/8" NPT thread;
• All models have Buna-N O-ring seals for leak proof connections for maximum installation versatility;
• VFB models are supplied with a standard brass metering valve, stainless steel valves are available upon request;
• 100 PSI maximum pressure rating;
• VFB models have a maximum temperature rating of 150°F

Specifications

• Display: Tube

Additional Specifications

• Flow Range: 2 to 20 scfh
• Material: Acrylic Plastic
• Type: Air
