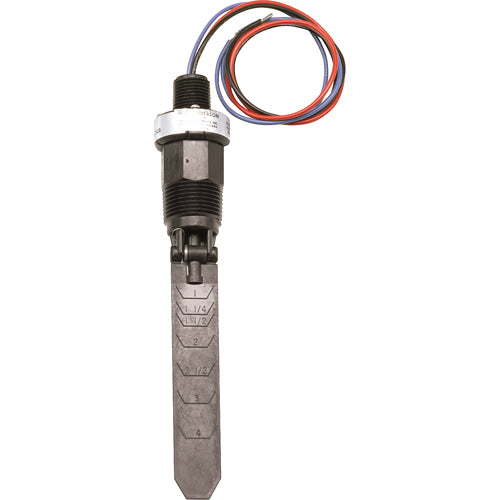

HL135-Flowtec Flow Switch

• Industrial control switch suitable for mounting in a protected environment;
• When flow stops, the vane spring moves the vane, actuating a single pole double throw switch rated at 5 A 120/250 VAC to start or stop motor, pump, engine, etc. ;
• Leak proof body and vane constructed of tough durable polyphenylene sulfide (equivalent to Ryton®) which has excellent chemical resistance;
• Full size trimmable vane is provided with moulded-in graduations allowing for installation in a 1" through 6" pipe ;
• Operating pressures are up to 150 PSIG (10 Bar) and temperatures to 212°F (100°C)

Specifications

• Operating Temperature: 100 °C (212 °F )

Additional Specifications

• Max. Pressure: 2000 PSIG
• Material: Polyphenylene Sulfide Vane
