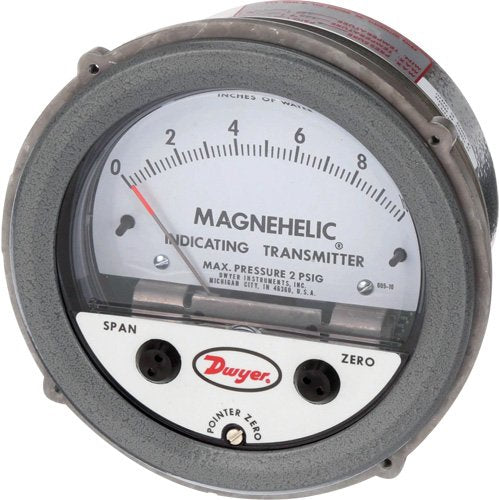

HC862-605 Series Magnehelic® Differential Pressure Gauge & Indicating Transmitter

• Provides for both visual monitoring and electronic control of very low differential pressure
• Ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when troubleshooting the system
• Easy-to-read dial gauge is complimented by the two-wire, 4-20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gauge mechanical design and Series 600 transmitter technology
• The two-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply
• Services air and non-combustible, compatible gases

Specifications

• Dial Diameter: 4"
• Pressure Range: 0 - 10 in. w.c.
• Connection: Panel Mount
• Dial Type: Analogue

Additional Specifications

• Maximum Pressure: 2 psi
• Gauge Accuracy: +/-2%
• Gauge Stability: ±1% F.S./yr.
• Gauge Pressure Limits: 2 psi (13.79 kPa)
• Transmitter Accuracy: 2 psi (13.79 kPa)
• Connection Thread: 1/8" NPT Female
• Gauge Certification(s): CE
• Temperature Limits: 20 to 120°F (-6.67 to 48.9°C)
• Transmitter Compensated Temperature Range: 32 to 120°F (0 to 48.9°C)
