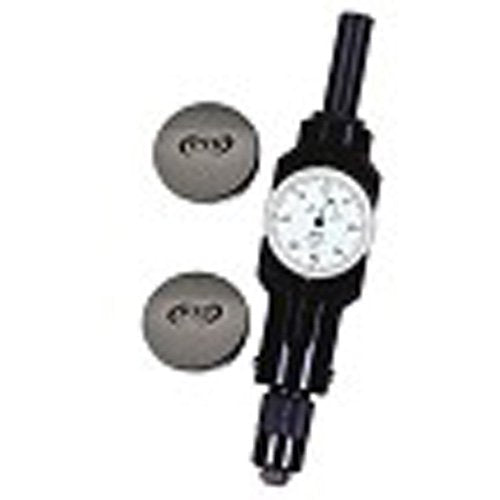

HC062-Rockwell C Scale Hardness Tester
Original price
$3,003.47
-
Original price
$3,003.47
Original price
$3,003.47
$3,003.47
-
$3,003.47
Current price
$3,003.47
- Economical way of grading and checking various metals in equivalent Rockwell C range of 20HRC to 67HRC
- Completely redesigned chassis made from aerospace aluminum houses a high quality displacement gauge
- Minimum sample thickness is 0.025" (6.35 mm) for most materials
- Shipped with factory-set preload, calibrated and ready to use
- Diamond tip indenter has been polished to a spherical radius of 0.004" and ground to an included angle of 60°
- Upper end (the shank) is the gripping area for insertion into a milling machine, drill press, or lathe
- Lower end is the load cell that extends up into the body of the hardness tester and houses a centreless ground precision spring which preloads the hardened steel indenter
- Direct reading analog dial is accurate to ±1.5 points
- The total force required to move the indenter through its full travel of 0.025" (6.35 mm) is 85 lbs. (38.56 kg)
- Includes: Rockwell C scale hardness tester, Test blocks (high and low range test blocks), Conversion chart, Carrying case
Specifications
- Display Type: Analogue
Additional Specifications
- Indicator Diameter: 1.6"
- Accuracy: ± 1.5 points
- Dimensions: 6.75 x 1.06" (17.1 x 2.7 cm)
- Weight: 12 oz. (340 g)
- 12 oz. (340 g)
