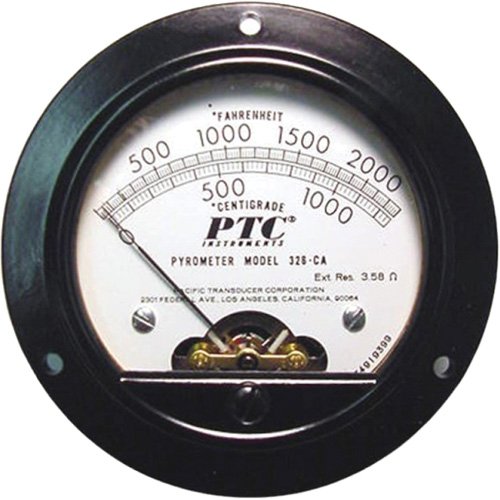

HB636-Pyrometer Kit

• A d'Arsonval type millivolt meter calibrated to indicate temperature rather than voltage with an accuracy of ±2% of full scale range
• Front flange provides for mounting the meter flush with a panel or dashboard
• Cold junction temperature adjustment screw located immediately below the dial
• Thermocouple wire is iron constantan (IC) and the wire is glass insulated to withstand high temperatures
• Black anodized aluminum mounting bracket is conveniently arranged with two sets of three mounting holes for vertical or horizontal meter mounting
• Ideal for measuring high temperatures especially in furnaces and kilns
• Includes: D'Arsonval type temperature meter, Iron constantan wire, Black anodized aluminum mounting bracket, Stainless steel Thermowell tube

Specifications

• Type: Contact
• Display Type: Analogue
• Temperature Range: 0-2300°F (0-1260°C)

Additional Specifications

• Wire Length: 6'
• Wire Gauge: 20 AWG
• External Resistance: 3.58 ohms
• Body Diameter: 2.75" (7 cm)
• Front Flange Diameter: 2.75" (7 cm)
• Accuracy: ±2% of Full Scale Range
