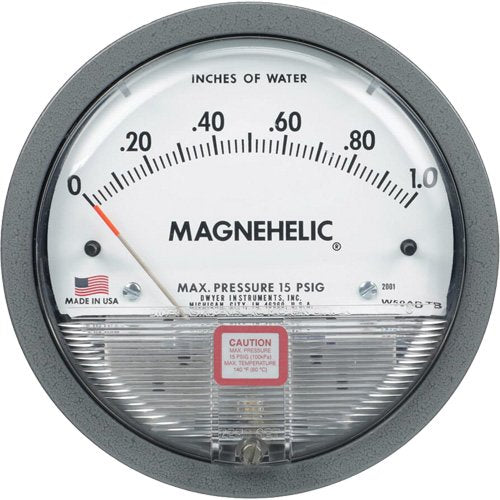

HA851-2000 Series Magnehelic® Differential Pressure Gauge

• Indicates positive, negative, or differential pressure
• Bezel provides flange for flush mounting in panel
• Clear plastic face is highly resistant to breakage and provides undistorted viewing of pointer and scale
• Precision litho-printed scale is accurate and easy to read
• Red tipped pointer of heat treated aluminum tubing is easy to see
• Pointer stops of molded rubber prevent pointer over-travel without damage
• "Wishbone" assembly provides mounting for helix, helix bearings and pointer shaft
• Jeweled bearings are shock-resistant mounted to provide virtually friction-free motion for helix, and are motion damped with high viscosity silicone fluid
• Zero adjustment screw is conveniently located in the plastic cover, and is accessible without removing the cover, while O-ring seal provides pressure tightness
• Helix, mounted in jeweled bearings, is precision made from an alloy of high magnetic permeability and turns freely, following the magnetic field to move the pointer across the scale
• Calibrated range spring is flat spring steel and small amplitude of motion assures consistency and long life
• Silicone rubber diaphragm with integrally molded O-ring is supported by front and rear plates and diaphragm motion is restricted to prevent damage due to overpressures
• Die cast aluminum case is precision made and iridite-dipped to withstand 168 hour salt spray corrosion test, and the exterior is finished in baked dark gray hammerloid
• Samarium cobalt magnet mounted at one end of range spring rotates helix without mechanical linkages

Specifications

• Dial Diameter: 4-3/4"
• Pressure Range: 0 - 0.25 kPa
• Connection: Panel Mount
• Dial Type: Liquid Filled Analogue

Additional Specifications

• Housing Material: Die-Cast Aluminum
