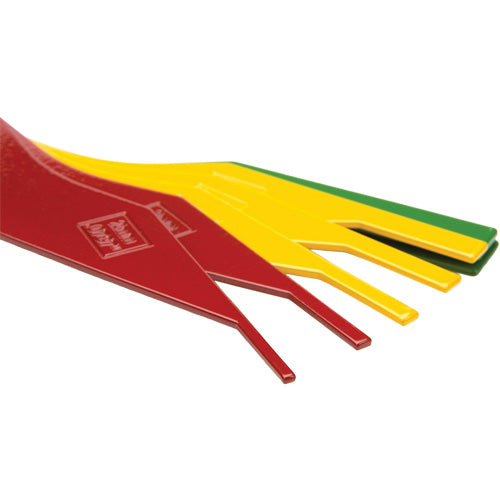

FLW160 - 8-Piece Colour-Coded Brake Lining Thickness Gauge

Description

• Perfect for both the professional technicians and the DIY home mechanic as an easy-to-use indicator and visual aid for determining remaining pad life
• Suitable for use on both disc and drum brakes, this durable 20-gauge steel measurement tool is colour coded with a durable green, yellow, or red powder coating that won't wear off to give a quick reference point on the status of your brake pads
• The long measuring blade tips can fit into spaces most digital micrometers and calipers cannot to help you determine how much friction material remains on your brake pads
• Each blade has its size stamped into the metal in metric as well as decimal SAE scale so you can tell with a glance a numerical value for the amount of pad you have left
• The green blade tips measure 0.4724-inch (15/32-inch)/12mm, 0.3937-inch (25/64-inch)/10mm, and 0.3150-inch (5/16-inch)/8mm
• The yellow tips measure 0.2362-inch (15/64-inch)/6mm, 0.1969-inch (13/64-inch)/5mm, and 0.1575-inch (5/32-inch)/4mm
• The red blade tips measure 0.1181-inch (1/8-inch)/3mm and 0.0787-inch (5/64-inch)/2mm

Additional Specifications

• Colour: Green, Yellow, Red
• Material: Steel
• Dimensions: 5" L x 1.25" W x 0.76" H
• Weight: 0.48 lbs.
• Manufacturer's Warranty: 1 Year Limited
• Blade Sizes: Green: 15/32", 25/64", 5/16" (12mm, 10mm, 8mm), Yellow: 15/64", 13/64", 5/32" (6mm, 5mm, 4mm), Red: 1/8", 5/64" (3mm, 2mm)
