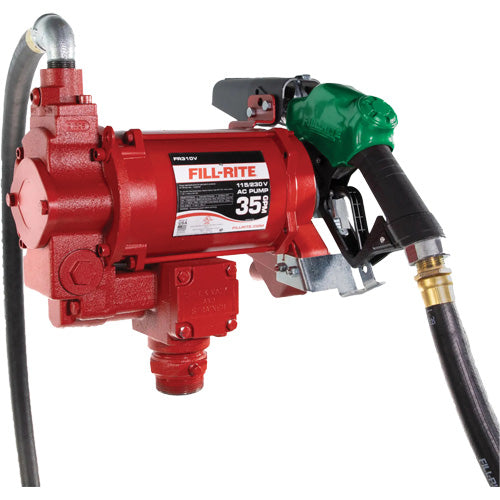

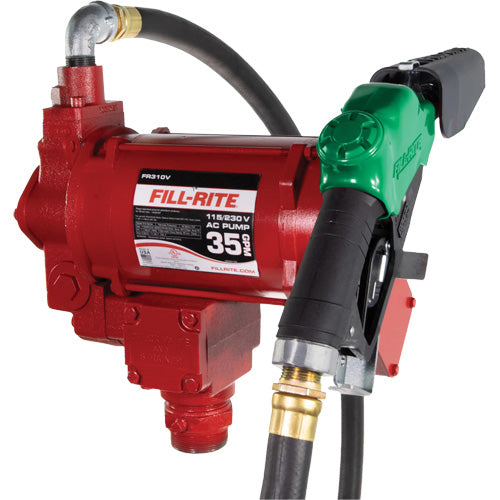

FLV909 - 115/230V AC Fuel Transfer Pump with Nozzle

Description

• Heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
• Fill-Rite’s trusted rotary vane pump technology delivers 35 gallons per minute, perfect for filling your largest equipment with fuel tanks sized at 35-140+ gallons
• Powered by a dual voltage 115-230V AC motor, you can conveniently select the right voltage during installation with a simple switch
• Equipped with a 2 inch bung mount, this pump is ideal for installing onto stationary aboveground tanks
• Designed for daily use with diesel fuel, kerosene, mineral spirits, Stoddard solvents, heptane, and biodiesel blends up to B20
• Rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
• Thermally-protected motor prevents overheating, ensuring your pump performs for years without worry
• Built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment

Additional Specifications

• Manufacturer's Warranty: Limited Lifetime
• Power Type: 115V/230V AC
• Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20
• Mounting Type: 2" NPT Bung Mount
• Duty Cycle: 30 min. On, 30 min. Off
• Motor Power: 0.75 HP
• Suction Lift: 18'
• Discharge Head: 60'
• Max. Operating Pressure: 26 PSI
