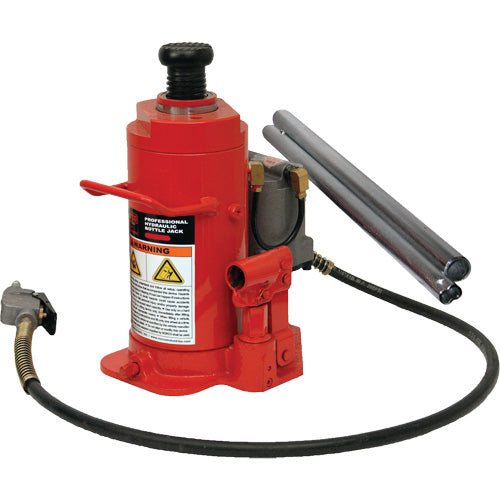

FLV865 - Standard Height Bottle Jack

Description

• For use in heavy duty trucks, farm equipment, building construction, construction and mining equipment, mobile home set-up and oil field applications
• Fast efficient air pump reduces lifting time and has a built-in relief mechanism which prevents the jack from being used beyond its maximum allowable capacity
• Convenient push button air valve connected to an in-line filter prevents contaminates from entering the air/hydraulic system
• Unique design allows for manual operation when air is not available
• Two piece zinc plated handle
• Parkerized coating on pump piston, extension screw and extension adapters and chrome coated ram offer protection against rust
• Longer wear life due to internally machined oil passages, smooth bearing surfaces and close tolerances
• Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard
• Equipped with a carrying handle

Additional Specifications

• Stroke Length: 6"
• Screw Extension: 4"
• Base Size: 6.625" x 8"
• Pressure Range: 100 to 130 PSI
