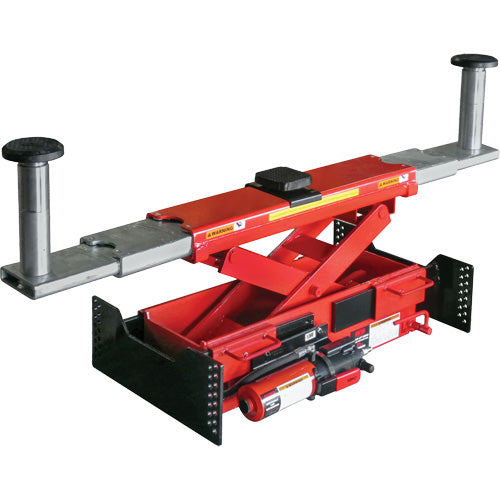

FLV858 - Air/Hydraulic Pump Operated Narrow Rolling Lift Bridge

Description

• Used in narrow quick lube pit applications or in conjunction with above ground lifts
• The bridge straddles the lift rails and raises the vehicle’s tires off the rails for wheel alignment, brake, tire and suspension work
• Push button air/hydraulic pump provides safe, quick lifting up to 9” which allows for a maximum lift height of 18-3/8" when using both adapters and extension screw extended
• The lifting pads safely support the vehicle on the bridge and the adjustable lift arms span up to 62-13/16”
• Universal mounting brackets adjust to a lift rail range of 32" to 46-1/2”
• Flat-end and hook-end adapter brackets are equipped with spring-loaded roller bearings for smooth maneuverability of bridge on lift rails - brackets are sold separately
• Mechanical stop prevents accidental lowering of bridge
• Lowering is accomplished with one hand on the release lever and the other hand releasing the mechanical stop
• Equipped with rubber faced saddles for differential lifting

Additional Specifications

• Includes: (2) 3-1/2” Adapters; (2) 5” Adapters; (2) Padded Saddles with Extension Screws
• Stroke Length: 9"
• Width Arms Retracted: 34-11/16"
• Width Arms Extended: 62-13/16"
