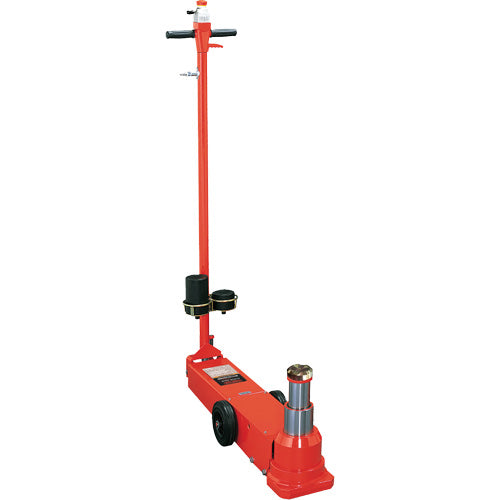

FLV843 - Telescopic Floor Jack

Description

• Heavy duty truck, rail, bus, agriculture and construction equipment applications
• 61.75" Long "T" handle helps in positioning jack under vehicles with low overhang
• Handle locking lever secures handle in either vertical, horizontal or 45 degree position
• Overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard
• Rust inhibitive coating on rams offers longer life
• Integrated filter protects air motor
• Double acting pump raises ram more quickly to the load
• Suspension loaded axle prevents wheel damage
• Vacuum operated ram retraction eliminates manual lowering of jack
• Safety button at the top of the handle can be pushed in to immediately stop the jack operation in case of emergency
• Includes a removable 2-3/4” diameter saddle, 2-9/16” and 5-7/8” long extensions with extension holder

Additional Specifications

• Length: 39.25"
• Width: 8.625"
• Handle Length: 61.75"
• Piston Stroke: 7.875"
• PSI Range: 120-175
• Saddle Diameter: 2-3/4"
