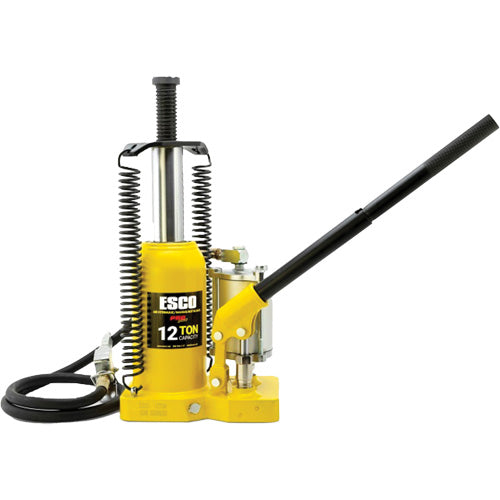

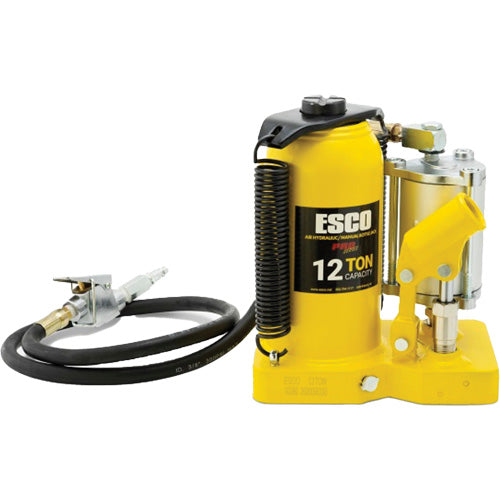

FLV718 - Pro Series Bottle Jack

Description

• Designed with the heavy-duty tire service market in mind
• Fully welded cylinder and frame provide superior strength and extended service life
• Extra thick jack base provides exceptional support and stability in severe conditions
• Compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more
• Chrome-plated piston for extra rust and corrosion resistance
• Fitted with a safety valve to prevent overloading
• Double spring design for controlled and safe decent while releasing pressure from the cylinder
• Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights
• Design to be operated using air or manually with included two-piece lifting/lowering handle
• Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger
• Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch- for easier constant airflow while raising of the jack to load
• Fitted with a heavy duty constructed chrome plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application

Additional Specifications

• Ram Travel: 5-3/4"
• Screw Adjustment: 3-1/4"
• Saddle Width: 1-3/4"
• Base Size (L x W): 8.25" x 5.375"
• Air Inlet Fitting: 1/4" NPT
• Air Pressure: 110 - 125 PSI
• Manufacturer's Warranty: 1 Year
