FLV644 - Pro Model Automotive Digital Multimeter W/PC Interface

Description

• Equipped with the latest testing capabilities, including Milliseconds Pulse Width, for measuring the on-time of fuel injectors
• Features a huge LCD display with a bar graph for easy viewing
• This meter can be interfaced with your PC or Notebook computer for enhanced diagnostics and data presentation
• The software and computer interface cable are included for free
• Inductive RPM pick-up features a five-position, adjustable sensitivity switch
• CATIII 1000 V approved and safety rated
• 58 Test ranges, 16 test functions
• mS Pulse Width for furl Injector ON-TIME
• Max/Min function captures high/low readings for better diagnostic capability
• 4 Step adjustable trigger levels
• USB Interface cable
• Desirable 20 Amp fuse test range
• Special access panels for fuses
• Hard storage case for safe storage
• Auto power-off, saves batteries
• Safe for use on hybrids and EV's

Additional Specifications

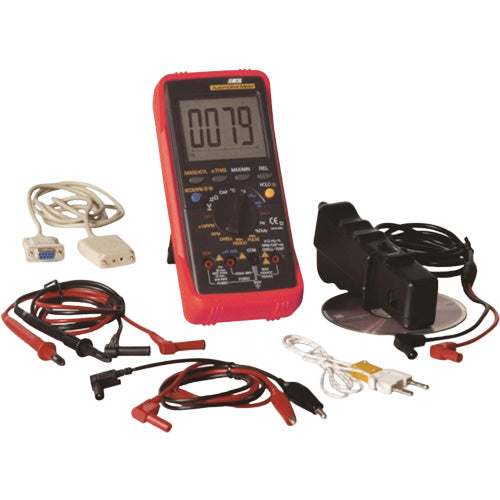

• Includes: (2) Test Leads Set; (1) RPM Pick-Up; (1) Temperature Probe; (1) Software CD; (1) USB Interface Cable; (1) Protective Holster; (1) 9V Battery; (1) Instruction Manual; (1) Hard Storage Case
• DC Volts: 0-400mV, 4V, 40V, 400V, 1000V
• AC Volts: 0-400mV, 4V, 40V, 400V, 750V
• DC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A
• AC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A
• Ohms: 0-400, 4K, 40K, 400K, 4M, 40M
• Capacitance: 0-40nF, 400nF, 4uF, 40uF, 100uF
• RPM 4: 0-4,000 RPM, 12,000 RPM x 10
• RPM2/DIS: 0-4,000 RPM, 6,000 RPM x 10
