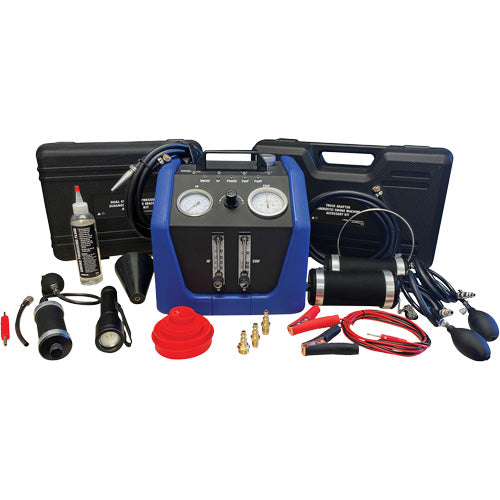

FLV163 - Dual EVAP/High Pressure Diagnostic Smoke Machine with Truck Adapter Accessory Kit

Description

• Compact, heavy duty design for years of reliable service
• Multiple options for smoke injection include built-in internal compressor, shop air and inert gases
• Quick smoke generation
• Built-in safety pressure relief valve
• Built-in pressure regulated at 0.5 PSI for safe EVAP testing
• Large easy to read pressure decay gauge 0-30 in. H2O (70 mbar) – EVAP
• Large easy to read pressure decay gauge 0-30 psi – HP/HD
• Easy to read and clean flow meter
• Non-toxic and non-corrosive smoke
• 10’ 12V power cables with durable clamps
• Heavy duty 10’ smoke injection hose
• Velcro strap for hose and power cable storage
• High intensity, battery operated smoke illuminating telescoping flashlight

Additional Specifications

• Includes: Dual Evap/High Pressure Diagnostic Smoke Machine; Smoke Hose; Power Cord; Full Set Of Block Off Caps; Exhaust Cone; Evap Schrader Valve Remover/Installer; Evap Service Port Adapter Hose; High Intensity Smoke Illuminating Battery Powered Flashlight; 8 Oz Smoke Producing Fluid; Bladder For Intake Testing; (2) Bladders For Heavy Duty/Truck Applications; 6” Ring; Temperature Sensor Port Adapter; Oxygen Sensor Port Adapter And Pressure Sensor Port Adapter
• Input Pressure: Max 100 psi (7 bar)
• Output Pressure: EVAP 12 – 14 inH2O (30 – 35 mBar), HP internal pump Max 22 psi (150 kPa), HP external pressure source Max 28 psi (190 kPa)
• Safety Pressure Relief: 120 (±5) psi
• Oil Fill Line Indicator: 3.4 oz (100 ml (±10 ml)
• Flow Meter: 0 – 0.040 in. (0 – 1.0 mm)
• Power Consumption: Max 6.5 Amps
• Operating Temperature: 0°F to 140°F (-17°C to 60°C )
• Pressure Supply: Air/Inert gas/Pump
