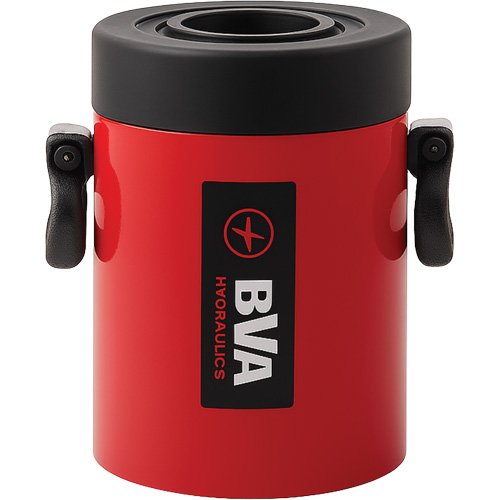

FLV072 - Hollow Hole Hydraulic Cylinder

FLV072 - Hollow Hole Hydraulic Cylinder

by BVA Hydraulics
SKU: FLV072
$8,498.58 - $8,498.58
$8,498.58
$8,498.58 - $8,498.58
$8,498.58

Specifications:

  • Capacity: 100 Ton(s)
  • Collapsed Height: 13-49/100"
  • Extended Height: 19-49/100"
  • Operating Pressure: 10000 PSI
  • Stroke Length: 6"

Description

  • Equipped with hard chrome rod prevents rust and corrosion, dual wipers help prevent contamination, and go hardened steel seat. Ideal for pulling and pushing applications
  • Equipped with a CH38F high flow coupler with dust cap
  • Material: Steel
  • Cylinder Bore Size: 3.11"
  • Outside Diameter: 4.92"
  • Collar Thread: 8-3/8"-12
  • Collar Thread Length: 2.38"
  • Mounting Thread: 5/8"-11 UNC
  • Internal Thread Length: 1.06"
  • Internal Dia. Mounting: 3.11"
  • Outside Dia. Mounting: 4.92"
    •
