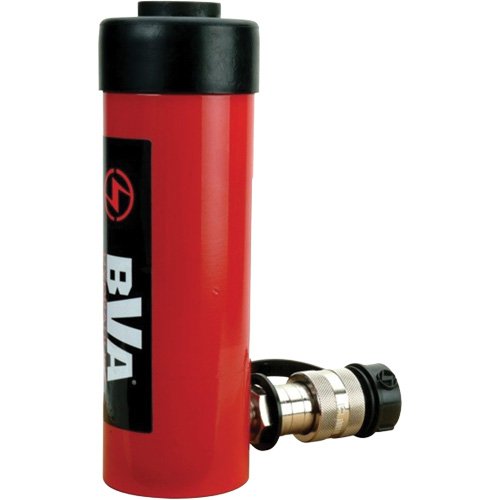

FLV038 - General Hydraulic Cylinder

Specifications:

• Capacity: 15 Ton(s)
• Collapsed Height: 7-87/100"
• Extended Height: 11-17/20"
• Operating Pressure: 10000 PSI
• Stroke Length: 3.98"

Description

• Manufactured in a solid one-piece alloy steel body, using polyurethane U-cup seals to provide a sure seal and longer life
• Standard hard chrome plated piston rod protects against corrosion and damage
• One-piece aluminum alloy bearing protects against cylinder wall damage
• Collar threads and base mounting holes are for fixturing
• Equipped with CH38F high-flow coupler with a dust cap for better protection
