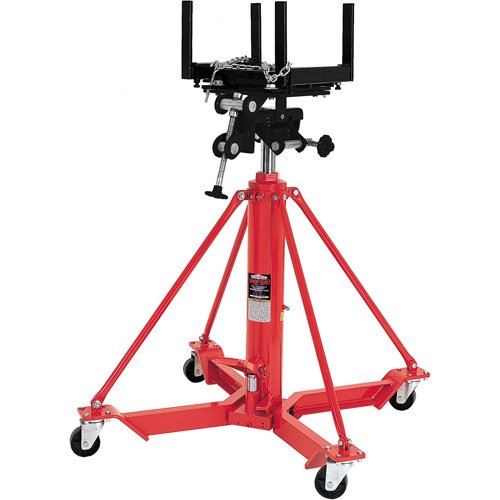

FLU765 - Under Hoist Truck Transmission Jack

Specifications:

• Lifting Capacity: 1 Ton(s)
• Lowered Height: 45-3/4"
• Raised Height: 74-1/4"

Description

• Designed for the removal, installation and transportation (in the lowered position) of heavy duty truck transmissions that are raised by an in-ground or above-ground lift
• Fully adjustable universal saddle with adjustable corner brackets and safety chain
• Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard
• 2” diameter, flash chromed, single stage ram provides added stability throughout the entire lift range
• Foot operated pump and lowering pedals allow use of both hands to position and align saddle with transmission
• Wide base with four 3-7/8” diameter heavy duty swivel ball bearing caster wheels provides stability and easy maneuvering
