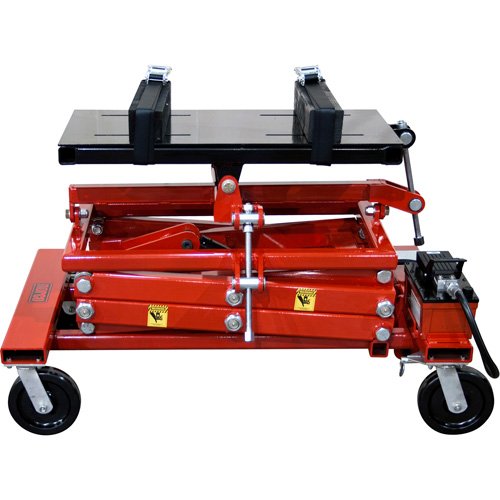

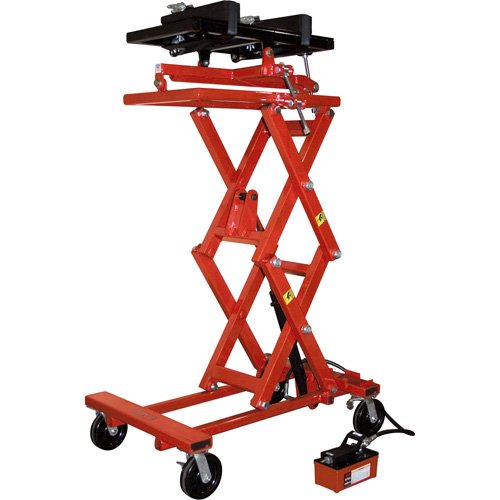

FLU753 - Powertrain Lift & Table

Specifications:

• Platform Dimensions: 19" L x 36" W
• Capacity: 2500 lbs.
• Raised Height: 78"
• Lowered Height: 31"
• Handle Height: 35"

Description

• This lift/table handles powertrain components like engines and their transmissions, engines with transaxle assemblies, rear ends and large electric vehicle batteries
• Serves as a work table where components can be lowered to a convenient work height for repairs
• An air/hydraulic foot pump includes a metered valve for safe lowering of the load
• Safety overload system in the air/hydraulic pump prevents jack from being used beyond the load-limiting standard
• Five foot extension hose with quick disconnect fittings stores in the lift base
• The foot pump can be removed from its holder and hydraulic hose quickly and easily extended by 5’ using the extension hose
• This provides hands free operation of the pump anywhere around the lift’s perimeter
• Scissors lift design provides easy 360˚ access to any component
• Two heavy duty ratchet tie-downs are included to safely secure the load on the lift table
• Table top height from 31” to 77-3/4” (with wood saddles) or 27.5” to 74-1/4” (base plate only)
• Four 8” diameter swivel caster wheels for easy maneuverability
• Rear wheels can be locked to prevent the lift from rolling
