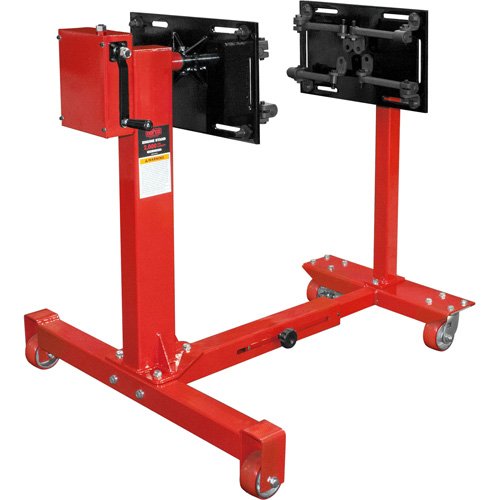

FLU748 - 75:1 Gear-Driven Engine Stand

Specifications:

• Capacity: 1 tons
• Stand Height: 42"
• Base Length: 38-1/4"/53-1/4"
• Front Width: 21-1/4"

Description

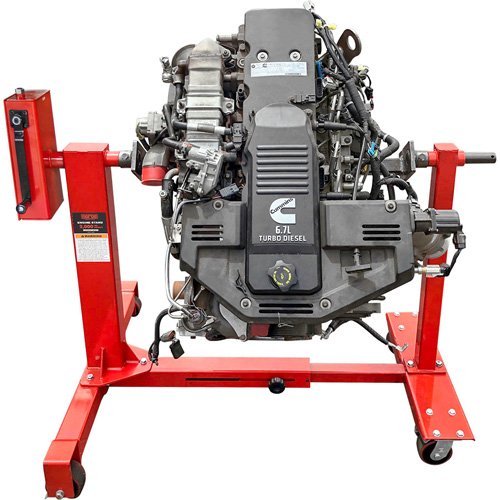

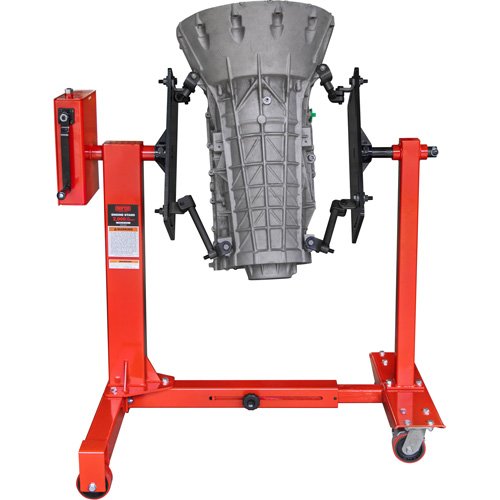

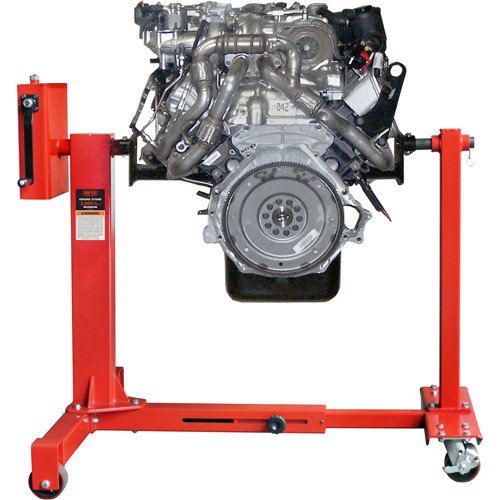

• A twin-post design made for use with automobile, light-duty truck, and medium-duty truck engines and transmissions
• 75:1 ratio gearbox activated by hand crank easily turns the 360 degree rotating head to the desired work position
• Meets the ASME PASE performance and safety standards
• Two rigid rear wheels
• One of the two front swivel casters has a lock for maximum stability and support
• Polyurethane wheels provide protection for expensive tile and epoxy floors
• Features two universal mounting plates, rotating shaft, eight fully adjustable arms and all the related mounting hardware
• Rotating shaft with mounting plate telescopes inside the post receiver for fine adjustment when mounting ends or sides of engines
• Mounting plates can be adjusted 36-1/4” apart
