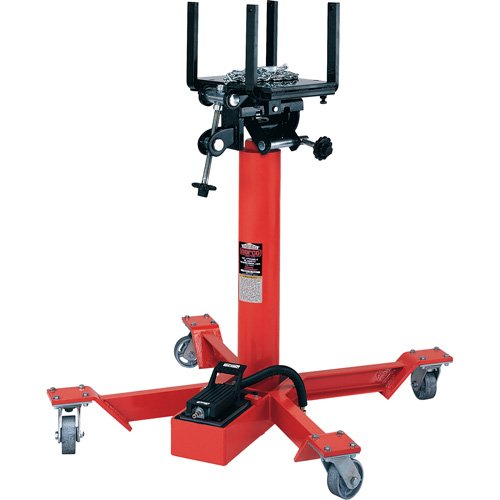

FLU738 - Under Hoist Air Hydraulic Truck Transmission Jack

Specifications:

• Lifting Capacity: 1 Ton(s)
• Lowered Height: 41-1/4"
• Raised Height: 69-3/8"

Description

• Air hydraulic foot pump provides hands free operation and easy convenient lifting
• Metered pump valve provides safe lowering of load
• Fully adjustable universal saddle with adjustable arms to position the transmission
• Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard
• Heavy duty chain with convenient chain tensioner secures load to saddle
• 2” diameter, flash chromed, single stage ram provides added stability throughout the entire lift range
• Wide base with four 3-7/8” diameter heavy duty swivel ball bearing caster wheels provides stability and easy maneuvering
