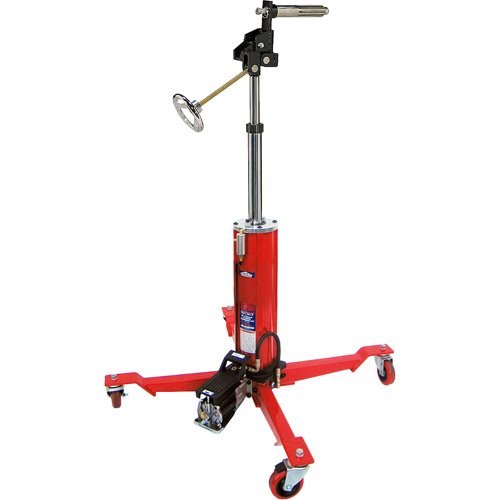

FLU727 - Telescopic Under Hoist Air Hydraulic Clutch Jack

Specifications:

• Lifting Capacity: 3/20 tons
• Lowered Height: 38-1/4"
• Raised Height: 73-1/2"

Description

• Designed for the removal, installation and transportation (in the lowered position) of 14” and 15-1/2” heavy duty clutches and flywheels on trucks that are raised by an in-ground or above-ground lift
• Tilting saddle activated by an integrated screw with machine handle enables the clutch to be positioned in either a horizontal position for clearing underneath truck or vertical position for installation and removal
• 2” and 1-3/4” diameter spline shafts rotate 360˚ for clutch and engine alignment
• Air/hydraulic foot pump provides hands free operation and easy, convenient lifting
• Metered pump provides safe lowering of load
• Two-stage flash chromed rams inhibit rust from entering hydraulic system
• Polyurethane wheels provide protection for tile and epoxy floors
