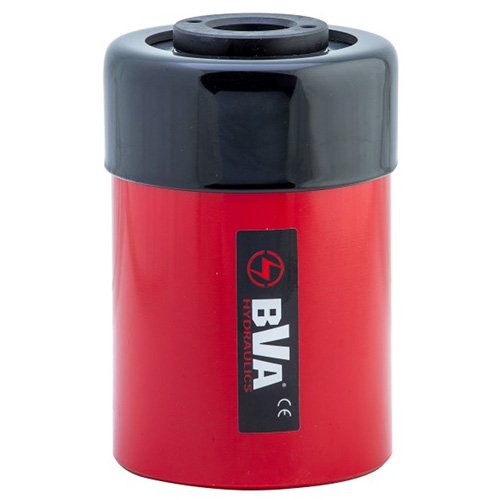

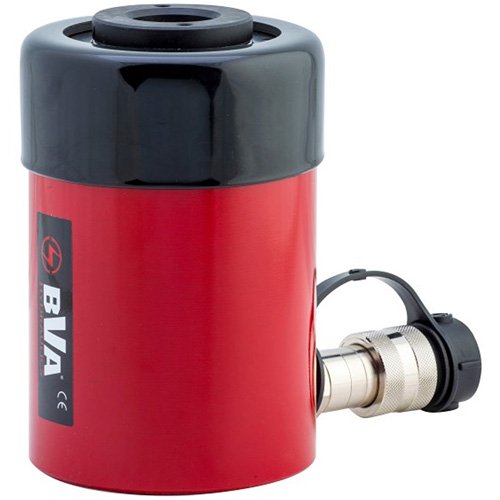

FLU699 - Hollow Hole Hydraulic Cylinder

FLU699 - Hollow Hole Hydraulic Cylinder

by BVA Hydraulics
SKU: FLU699
$3,686.54 - $3,686.54
$3,686.54
$3,686.54 - $3,686.54
$3,686.54

Specifications:

  • Capacity: 30 Ton(s)
  • Collapsed Height: 7-1/20"
  • Extended Height: 9-57/100"
  • Operating Pressure: 10000 PSI
  • Stroke Length: 2.52"

Description

  • BVA Hydraulics Hollow Hole Single Acting Cylinders work at max. 10,000 psi (700bar), equipped heavy duty compression spring, dual wipers help prevent contamination, and go with collar thread protector
  • Ideal for pulling and pushing applications
  • All BVA cylinders come equipped with a CH38F high flow coupler with dust cap
  • Material: Steel
  • Oil Usage (Push): 261.05 CC
  • Cylinder Bore: 2.84"
  • Outside Diameter: 4.5"
  • Mounting Thread: 3/8″-16UNC
  • Internal Thread Length: 0.87"
  • Internal Dia. Mounting: 1.31"
  • Outside Dia. Mounting: 2.48"
    •
