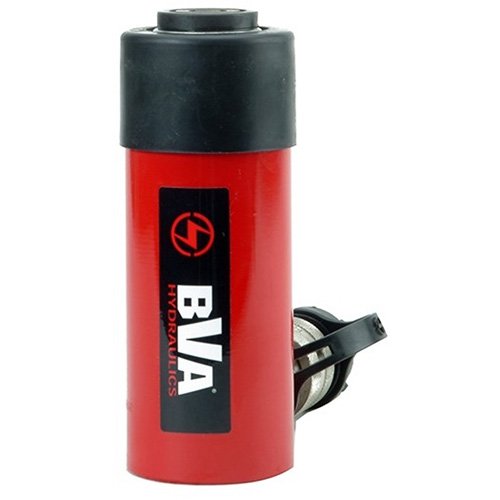

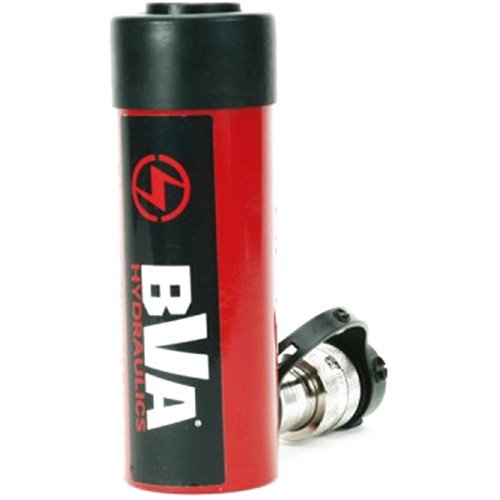

FLU693 - General Hydraulic Cylinder

Specifications:

• Capacity: 10 Ton(s)
• Collapsed Height: 6-17/20"
• Extended Height: 10-87/100"
• Operating Pressure: 10000 PSI
• Stroke Length: 4.02"

Description

• BVA Hydraulics General Cylinder works at max. 10000 psi (700 bar), manufactured in a solid one-piece alloy steel body, using polyurethane U-cup seals to provide a sure seal and longer life
• Standard hard chrome plated piston rod protects against corrosion and damage; one-piece aluminum alloy bearing protects against cylinder wall damage
• Collar threads and base mounting holes are for fixturing
• All BVA cylinders come equipped with CH38F high-flow coupler with a dust cap for better protection
