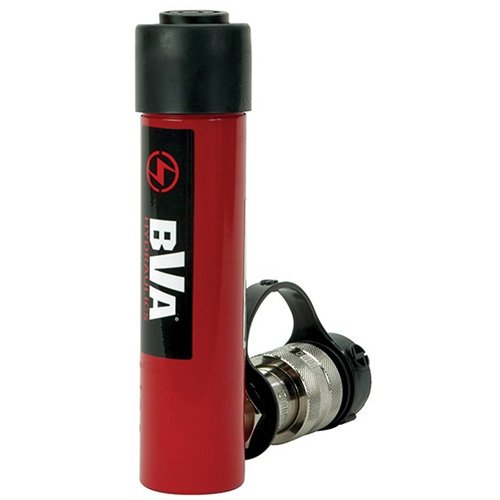

FLU690 - General Hydraulic Cylinder

FLU690 - General Hydraulic Cylinder

by BVA Hydraulics
SKU: FLU690
$878.34 - $878.34
$878.34
$878.34 - $878.34
$878.34

Specifications:

  • Capacity: 5 Ton(s)
  • Collapsed Height: 6-13/20"
  • Extended Height: 9-18/25"
  • Operating Pressure: 10000 PSI
  • Stroke Length: 3.07"

Description

  • BVA Hydraulics General Cylinder works at max. 10000 psi (700 bar), manufactured in a solid one-piece alloy steel body, using polyurethane U-cup seals to provide a sure seal and longer life
  • Standard hard chrome plated piston rod protects against corrosion and damage; one-piece aluminum alloy bearing protects against cylinder wall damage
  • Collar threads and base mounting holes are for fixuring
  • All BVA cylinders come equipped with CH38F high-flow coupler with a dust cap for better protection
  • Material: Steel
  • Oil Usage (Push): 50.31 CC
  • Cylinder Bore: 1.13"
  • Outside Diameter: 1.5"
  • Rod Diameter: 1"
  • Saddle Diameter: 0.98"
  • Collar Thread: 1-1/2"-16
  • Collar Thread Length: 1.1"
  • Rod Internal Thread: 3/4"-16UNF
    •
