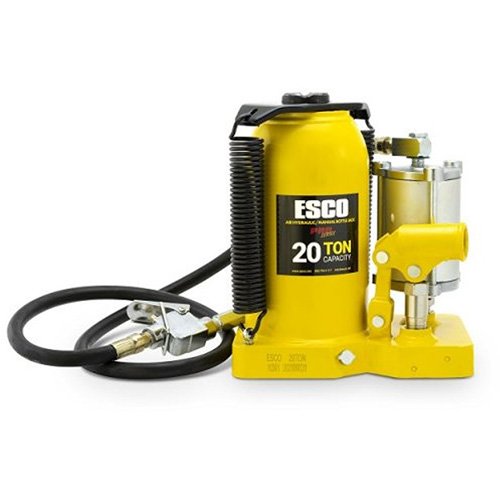

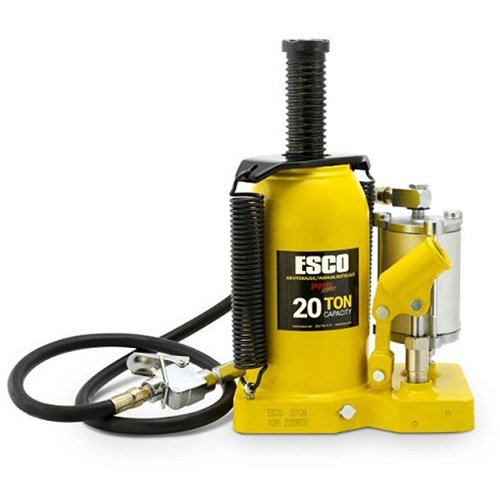

FLU538 - Pro Series Bottle Jack

Specifications:

• Lifting Capacity: 20 Ton(s)
• Lowered Height: 10"
• Raised Height: 20"
• Operation Type: Air Hydraulic

Description

• Fully welded cylinder and frame provide superior strength and extended service life
• Extra thick jack base provides exceptional support and stability in severe conditions
• The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more
• Chrome-plated piston for extra rust and corrosion resistance
• Fitted with a safety valve to prevent overloading
• Double spring design for controlled and safe descent while releasing pressure from the cylinder
• Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights

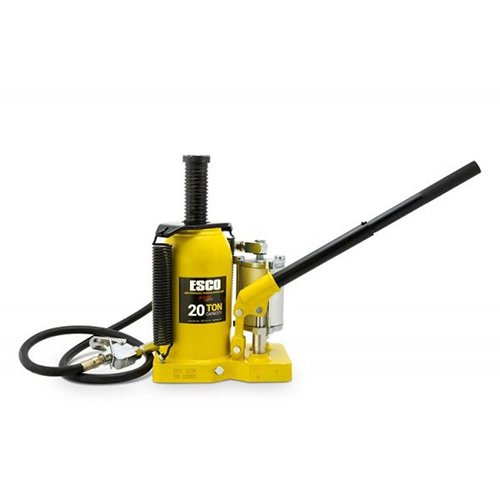

• Design to be operated using air or manually with included two-piece lifting/lowering handle
• Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger
• Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch- for easier constant airflow while raising of the jack to load
• Fitted with a heavy-duty constructed chrome-plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application
