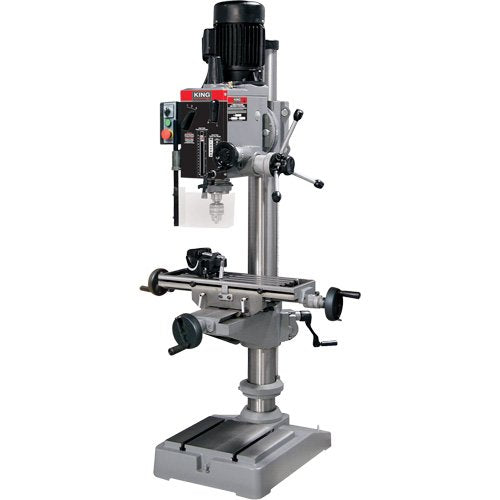

BV699-Gearhead Milling Drilling Machine

• Magnetic line interruption switch needs a restart after a power failure
• Spindle is equipped with four heavy-duty tapered roller bearings
• Powerful 1.5 HP motor
• Forward and reverse switch
• Includes: 1/2" chuck with key, 3-1/2" angle vise, Safety guard

Specifications

• Drilling Capacity: 1-1/4"
• No. of Speeds: 6
• Table Size: 7-1/2" W x 23" L x 78" H
• Overall Width: 37"
• Overall Length: 38"
• Overall Height: 78"

Additional Specifications

• Max. Distance Spindle Nose to Table: 26-1/2"
• Max. Distance Spindle Nose to Base: 47"
• Swing: 20-7/16"
• Spindle Taper: R8
• Spindle Stroke: R8
• Diameter of Column: 4-1/2"
• Face Mill Capacity: 4"
• End Mill Capacity: 3/4"
• Motor: 2 Amps
