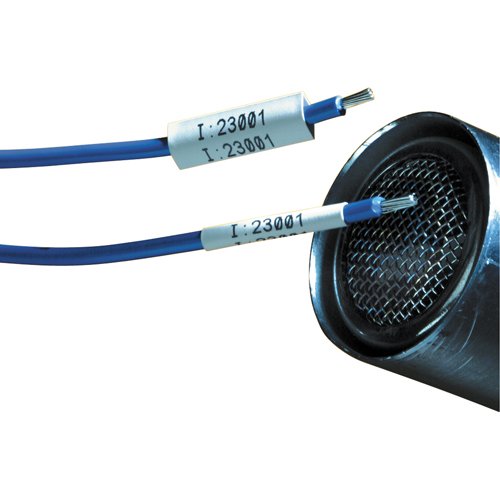

SEH846-B-342 PermaSleeve® Wire Marking Sleeves

• Heat-shrinkable wire marker sleeves fit snugly around wires
• Fade-resistant and flame-retardant
• Meets the following insulating and physical property specifications: SAE-AMS-DTL-23053/5C (class 1); SAE-AS-81531; MIL-STD-202; Tested per ASTM E162, ASTM E662; Service Temp -40°F to 267°F (short burst max temp: 5 min at 500°F, 24 hours at 350°F); Agency Approvals UL, RoHS
• For use with BBP(R)33 only

Specifications

• Material: Polyolefin
• Colour: White
• Label Height: 0.439"
• Label Width: 2"
• For Use With: BBP® 33

Additional Specifications

• For Wire Gauge: 16 to 8
• For Wire Diameters: 0.094-0.0215
