IC783-Refractometer with ISO Certificate

• Monitors the freezing point of both Ethylene Glycol and Propylene Glycol
• Measures the freezing point of automotive coolants plus battery charge condition
• Easy to operate with simple to read scales
• Requires only 2 or 3 drops of sample
• Prism and lens with a simple focus adjustment provides repeatable results
• Automatic Temperature Compensation (ATC)

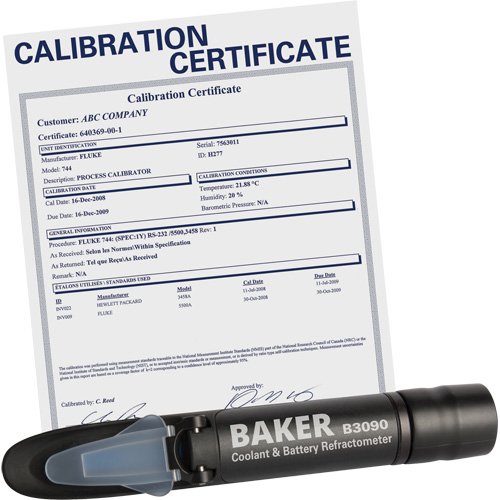

• Includes: Refractometer, Cover plate, Calibration adjustment plate, Cleaning cloth, Solution/sample applicator, Hard carrying case, ISO Certificate with full Data and Uncertainties

Specifications

• Display: Analogue (Sight Glass)
• Readings: Battery Acid Freezing Point/Coolant Freezing Point

Additional Specifications

• Measuring Range: -50 to 0°C (Glycol)/1.100 to 1.400 sg (Battery Fluid)/40 to 0°C (Cleaning Fluid)
• Minimum Scale: 0.01 sg (Battery)/5°C (Propylene and Ethylene, Cleaning Fluid)
• Resolution: 1°
• Accuracy: ±1°
• Automatic Temperature Compensation Range: ±1°
• Dimensions: 6.5 x 1 x 1.5" (170 x 30 x 40mm)
• Weight: 7 oz. (200 g)
