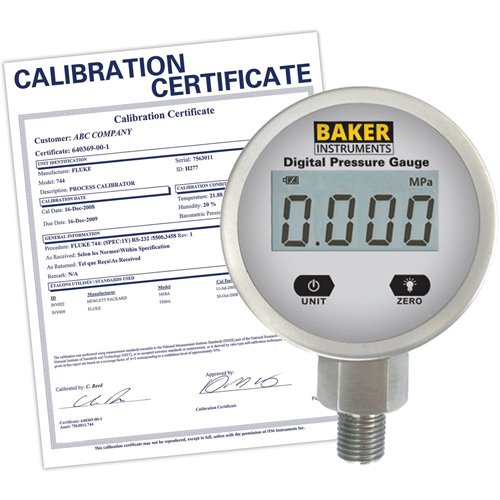

IC648-B5000 Series Pressure Gauge with ISO Certificate

• This digital pressure gauge with integral bar graph features 1% accuracy, backlighting for easy reading, and up to 7 selectable engineering units, allowing one gauge to be used in a variety of pressure applications
• Displays real-time pressure with short response times and excellent long-term stability
• The all stainless steel wetted parts make this gauge suitable for a wide variety of industrial liquids and gaseous mediums
• Compatible with air, liquids, and gases
• 4-digit LCD display with backlight provides clear readings
• Push-button zero
• Includes: (2) AAA batteries, (1) ISO certificate

Specifications

• Dial Diameter: 2-1/2"
• Pressure Range: 0 - 100 psi/0-690 kPa
• Connection: Bottom Mount
• Dial Type: Digital

Additional Specifications

• Additional Measuring Ranges: 0 - 7.03 kgf/cm², 0 - 203.6 inHg, 0 - 0.689 Mpa
• Resolutions: 0.1 psi, 0.01 kgf/cm², 0.1 inHg, 1 kPa, 0.001 Mpa
• Accuracy: 1% F.S.
• Long-Term Stability: 0.5% F.S./Year
• Sampling Rate: 0.5% F.S./Year
• Overload Capacity: < 1500 PSI; 150%, ≥ 1500 PSI; 120%
• Process Connection: 1/4" Male NPT
• Display: 4 Digit Backlit LCD
• IP Rating: IP64
