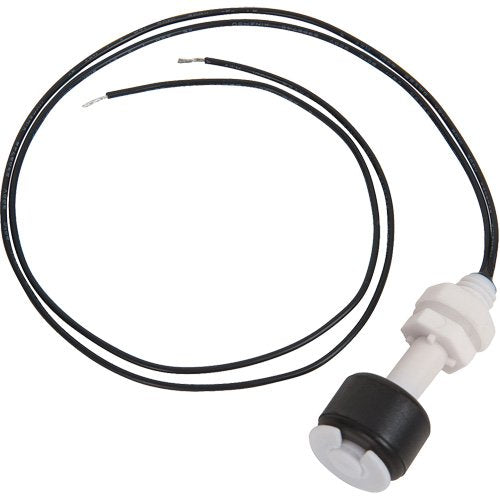

IC518-Vertical Float Level Switch

• Designed to be mounted on the top or bottom of a tank
• Includes: Float, Stem, Washer, Nut

Specifications

• Operating Temperature: ± -10 °C to ±85 °C (± -10 °F to ±179 °F)

Additional Specifications

• Ingress Protection: IP65
• Material: Buna-N & Epoxy (Float), Polypropylene (Stem), PVC (Wire Jacket)
• Stem Length: 55 mm (2.17")
• Float Height: 15 mm (0.59")
• Float Diameter: 15 mm (0.59")
• Pressure Limit: 290 PSIG (20 bar)
• Working Voltage: 250 VAC, 200 VDC
• Switching Current: 0.5 A
• Fitting: 1/8" Male M10
