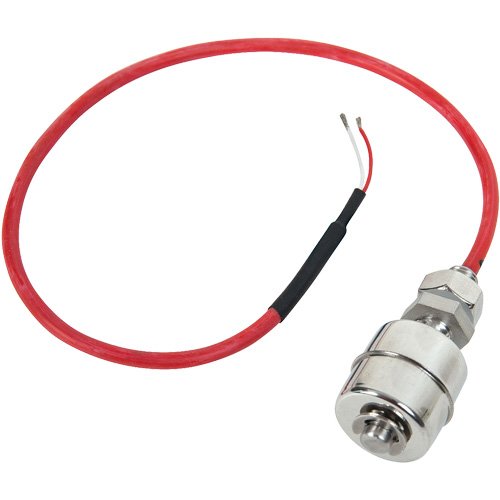

IC516-Vertical Float Level Switch

• Designed to be mounted on the top or bottom of a tank
• Includes: Float, Stem, Washer, Nut

Specifications

• Operating Temperature: ± -20 °C to ±110 °C (± -4 °F to ±230 °F)

Additional Specifications

• Ingress Protection: IP65
• Material: 316 Stainless Steel (Float & Stem), Silicone (Wire Jacket)
• Stem Length: 64 mm (2.52")
• Float Height: 26 mm (1.02")
• Float Diameter: 26 mm (1.02")
• Pressure Limit: 290 PSIG (20 bar)
• Working Voltage: 250 VAC, 200 VDC
• Switching Current: 0.5 A
• Fitting: 1/8" Male M10
