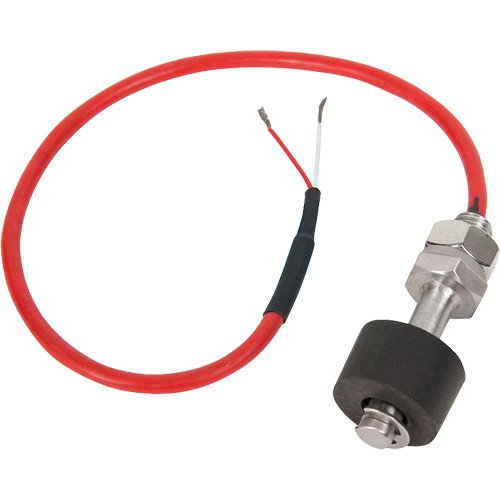

IC515-Vertical Float Level Switch
by Baker
Original price
$24.52
-
Original price
$24.52
Original price
$24.52
$24.52
-
$24.52
Current price
$24.52
- Designed to be mounted on the top or bottom of a tank
- Includes: Float, Stem, Washer, Nut
Specifications
- Operating Temperature: ± -20 °C to ±110 °C (± -4 °F to ±230 °F)
Additional Specifications
- International Protection Class: IP65
- Material: Buna-N & Epoxy (Float), 316 Stainless Steel (Stem), Silicone (Wire Jacket)
- Stem Length: 62 mm (2.44")
- Float Height: 16 mm (0.63")
- Float Diameter: 16 mm (0.63")
- Pressure Limit: 290 PSIG (20 bar)
- Working Voltage: 250 VAC, 200 VDC
- Switching Current: 0.5 A
- Fitting: 1/8" Male M10
