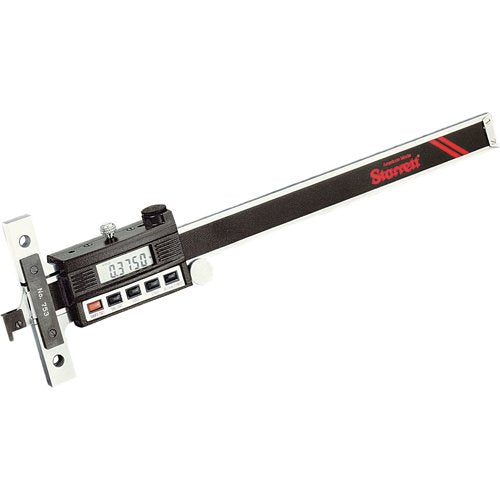

IA635-Electronic Depth Gauges 3753A Series

• Linear accuracy: ± 0.001" (± 0.03 mm)
• Resolution: 0.0005" (0.01 mm)
• Inch/millimeter conversion
• Hardened stainless steel body and slide for long life
• Fine adjustment thumb roll for precision measurements
• Lock screw to hold the slide in position
• Zero at any position
• Hold readout at any position
• Limits button allows high and low limits to be set.
• Manual ON/OFF, plus a built-in automatic shut off
• Hardened base is standard 2 3/4" (70 mm) long, optional base extensions are available
• Included: Hook attachment and one 3 V batteries no. CR2032 with one-year minimum life
• 0-12"/300 mm Range, Depth Gauge without Output, in Case

Specifications

• Range: 0-12"

Additional Specifications

• EDP No.: 12260
