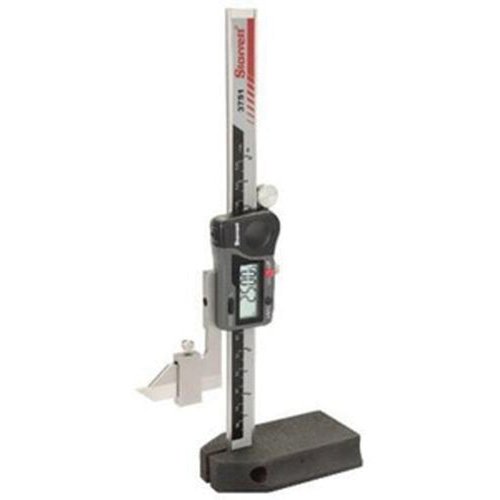

IA479-Electronic Height Gage

• Fine adjustment thumb roll for precision measurements
• Rounded nose scriber cuts clean, sharp lines with smoothness and less pressure
• Lock to hold the slide in position
• Hardened, ground, and lapped base with finger grooves provides ease of movement
• Easy access to single long-life battery
• Vertical bar is back from the edge of the nose for better stability
• Scriber can reference zero from the bottom of the base to get the full 6" (150mm) usable range
• Inch-millimeter conversion
• Zero at any position
• Features a manual on/off button plus automatic turn off after 5 minutes of inactivity
• Optional depth attachment PT08680A available for measuring depth of holes, slots, and recesses (sold separately)
• Plastic case

Specifications

• Range: 0-6"

Additional Specifications

• Display Type: LCD
• Character Height: 8 mm
• Material: Stainless Steel
• Battery Type: CR2032
• Voltage: CR2032
• Linear Accuracy: 0.001" (0.02 mm)
• Resolution: 0.0005" (0.01 mm)
