HV041-V-Blocks & Clamps for Round or Square Work

• 1 V-Block and Clamp
• Hardened steel, precision ground parallel and square
• V-grooves are ground central and parallel to the sides and base - perfect alignment in matched pairs

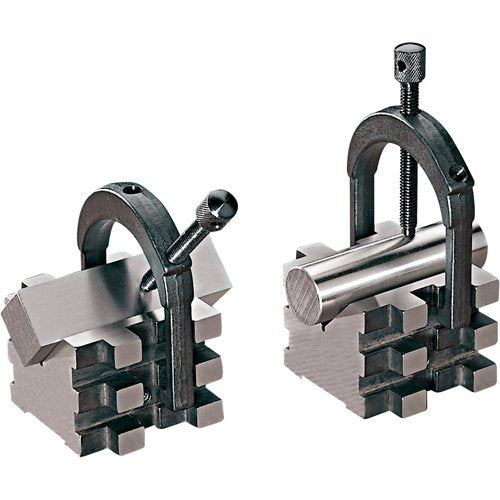

• Clamps have screw holes at 45° and 90° to hold either square or round work
• Clamps do not project over the width of the block, permitting it to be used on the base, ends or sides
• 3/8-16 tapped holes permit mounting blocks on faceplates or angle irons
• Each block is 2 1/2" long x 3" wide x 2" high (63 x 75 x 50 mm)
• Capacity: 2" (50 mm) Dia. Round; 1 7/16" (36 mm) Square (1 9/16" [40 mm] with Screw at Top)

Specifications

• Material: Steel

Additional Specifications

• EDP No.: 52590
