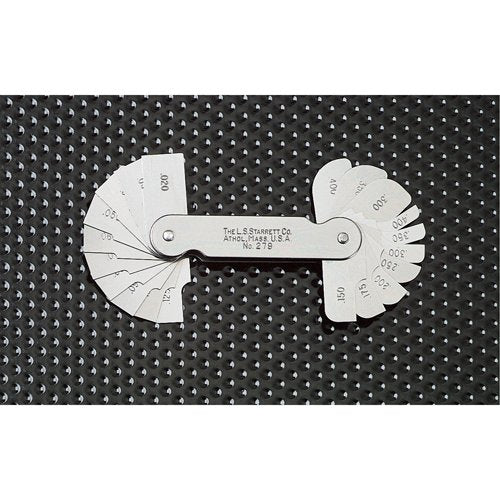

HU407-Fillet or Radius Gauges

• INCH READING
• Has twenty leaves with radii from .020-.400" inclusive. Nine leaves have concave and convex radii from .020-.100 inclusive by .010", four leaves with concave and convex radii from .125-.200 inclusive by .025", one leaf with concave and convex radii of .250", three leaves with concave radii only from .300-.400 inclusive by .050" and three leaves with convex radii only from .300-.400 by .050".

Specifications

• Range: 0.020" - 0.400"

Additional Specifications

• EDP No.: 51314
• No. of Leaves: 20
