DB829-Air Drum Pumps

• MIXING DRUM PUMPS

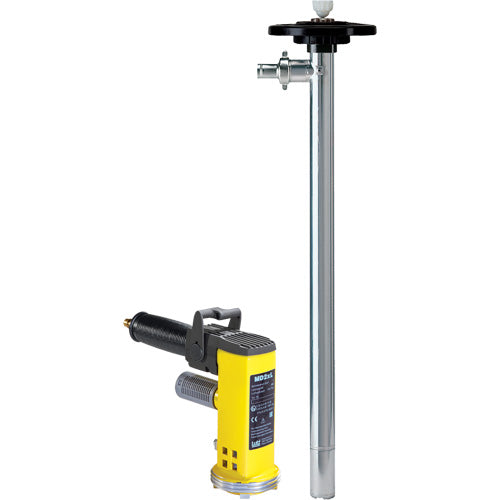

• Examples of Liquids: Alcohols, acetone, acetonitrile, acetates, ether, diethanolamine, freon frigen, methylene chloride, dimethyl phthalate, dioxane, diethylamine, pyridine, etc. ; MIXING DRUM PUMPS: Mixing pump tube is to be used where it is necessary to mix and pump in a single operation. Ideal for use in containers or in drums with a 2" bunghole. Drive shaft of pump tube is sealed by a single-acting mechanical seal and two shaft seals. Pump tube must not be allowed to run dry. Comes with 39" pump tube and stainless steel drive shaft. NOTE: Only DB837 and DB829 can be used for flammable liquids and include static kit. ; ; E. Compressed air motor: 300 W, 2/5 HP operating pressure is 87 PSI ; Note: Models DB838, DB816, DB821, DB822, DB829 and DB830 come with Hastelloy C drive shaft. ; Pumps that have a stainless steel construction come with a wall hanger, 10 ft. bonding wire and 26' grounding wires. ; Pumps that have a polypropylene construction come with a barrel adaptor, a wall hanger, 8' PVC hose and hose c-clamps (except DB827) .

Specifications

• Max. Flow Rate: 26 GPM
• Material: Stainless Steel

Additional Specifications

• Bearings: Carbon
• Max. ft. of Head: 42.5
• Gravity: 1.6
• Specific Viscosity cps: 500
• Wt. lbs.: 500
• Motor Type: E.
