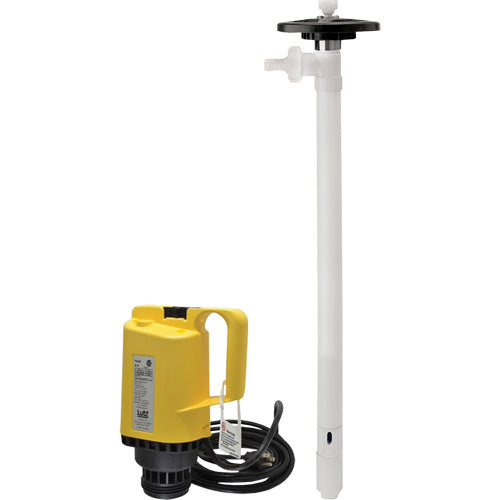

DB821-Electric Drum Pumps

• Examples of Liquids: Highly concentrated acids and alkalis, bromic acid, hydrobromic acid, chloroform, dimethyl phthalate, hydrofluoric acid, potassium bromate, sodium perchlorate, phosphoric acid 95%, nitric acid, etc. ; DRUM PUMPS: Sealless pumps suitable for pumping clean, dirty thin bodied, slightly viscous, aggressive and non-aggressive liquids out of drums and containers. Pump tube is non-lubricated, thus preventing contamination of the liquids pumped. Comes with 39" pump tube and stainless steel or Hastelloy C drive shaft. Models DB823, DB824, DB825 and DB826 come with mechanical seal. NOTE: Only DB837 and DB829 can be used for flammable liquids and include static kit. ; A. Electric motor: 640 W, 0.85 HP, 120 V, 60 Hz, open drip-proof with 16' cord and plug ; ; Pumps that have a stainless steel construction come with a wall hanger, 10 ft. bonding wire and 26' grounding wires. ; Pumps that have a polypropylene construction come with a barrel adaptor, a wall hanger, 8' PVC hose and hose c-clamps (except DB827).
• Highly concentrated acids and alkalis, bromic acid, hydrobromic acid, chloroform, dimethyl phthalate, hydro_x001F_ uoric acid, potassium bromate, sodium perchlorate, phosphoric acid 95%, nitric acid, etc.

Specifications

• Max. Flow Rate: 42 GPM
• Material: PVDF

Additional Specifications

• Bearings: PTFE
• Max. ft. of Head: 34
• Gravity: 1.1
• Specific Viscosity cps: 100
• Wt. lbs.: 100
• Motor Type: A.
