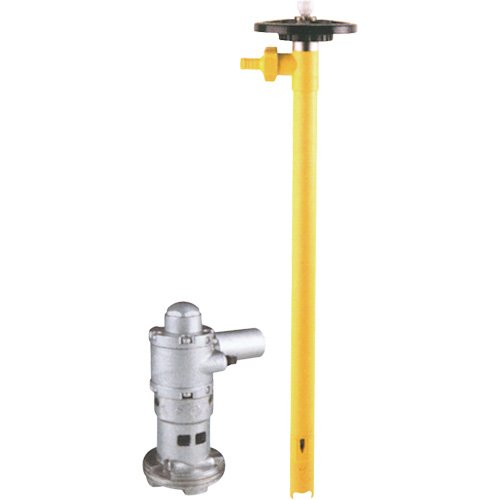

DB816-Air Drum Pumps

• Examples of Liquids: Acids, alkalis, galvanic fluids, phosphates, sulphates, nitrates, chlorates, paints, inks, water, oils, sulphites; DRUM PUMPS: Sealless pumps suitable for pumping clean, dirty thin bodied, slightly viscous, aggressive and non-aggressive liquids out of drums and containers. Pump tube is non-lubricated, thus preventing contamination of the liquids pumped. Comes with 39" pump tube and stainless steel or Hastelloy C drive shaft. Models DB823, DB824, DB825 and DB826 come with mechanical seal. NOTE: Only DB837 and DB829 can be used for flammable liquids and include static kit. ; B. Compressed air motor: 220 W, 1/3 HP, operating pressure is 87 PSI Note: Models DB838, DB816, DB821, DB822, DB829, and DB830 come with Hastelloy C drive shaft. ; Pumps that have a stainless steel construction come with a wall hanger, 10 ft. bonding wire and 26' grounding wires. ; Pumps that have a polypropylene construction come with a barrel adaptor, a wall hanger, 8' PVC hose and hose c-clamps (except DB827).

Specifications

• Max. Flow Rate: 29 GPM
• Max. Head: 20'

Additional Specifications

• Pump Tube Material: Polypropylene
• Bearings: Teflon®
• Gravity: 1.2
• Specific Viscosity cps: 600
• Wt. lbs.: 600
